Socket Weld Flanges

Compact Design for High-Pressure Service

Socket Weld Flanges feature a recessed socket that allows the pipe to be inserted and secured with an external fillet weld, providing accurate alignment and a strong connection.

Primarily used in small-bore, high-pressure piping systems, they are well suited for hydraulic, steam and process applications.

STELVERA FORGE S.p.A. manufactures Socket Weld Flanges in a wide range of materials, sizes and pressure classes, with special requirements available on request.

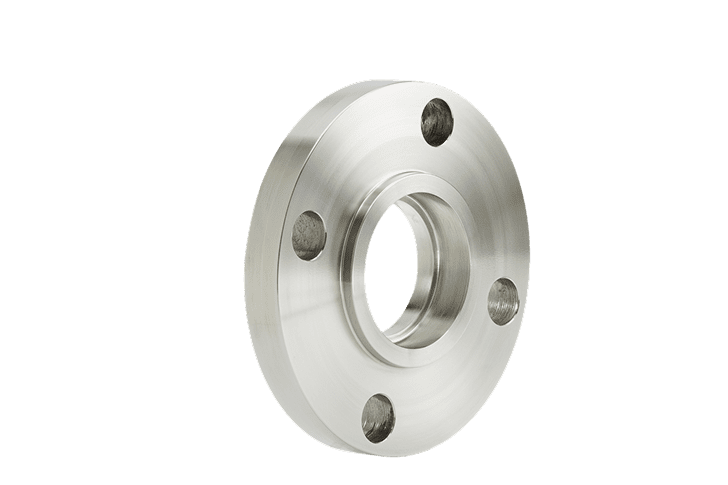

Socket Weld Flange

Dimensions

B16.5
½” – 12″
150# – 2500#

12″ and larger available per customer specifications.

Primary Alloys Inventoried

Hastelloy – C276, B3, C22, C-2000, G-30, 230
Alloy 20, 200/201, 400, 600, 601, 625, 800HT, 825
AL6XN (N08367), 904L, 310, 317L, 321, 347
Duplex Stainless – 2205, 2507, 255
Titanium – Grades 2, 7, and 12
Aluminum Grades – 1100, 3003, 6061 and 5083
Chromes-Moly – F-5, F-9, F-11 and F-22

Other material available upon request

Compliance and Certifications

ISO 9001: 2015, PED 2014/68/EU, NACE, EN 10204 3.1
